Product features:

Support the highest video resolution as high as 1080P;
Support HDMI 250MHZ clock bandwidth， 2.5 Gbps data bandwidth per channel(all channels 7.5 Gbps data bandwidth);
Support the Deep Color of HMDI 12bit(all channels 36bit Deep Color);
Support uncompressed audio such as LPCM;
Support compression Digital audio signal transmission， such as DTS Digital， Dolby Digital Support HDCP devices.

Specifications:

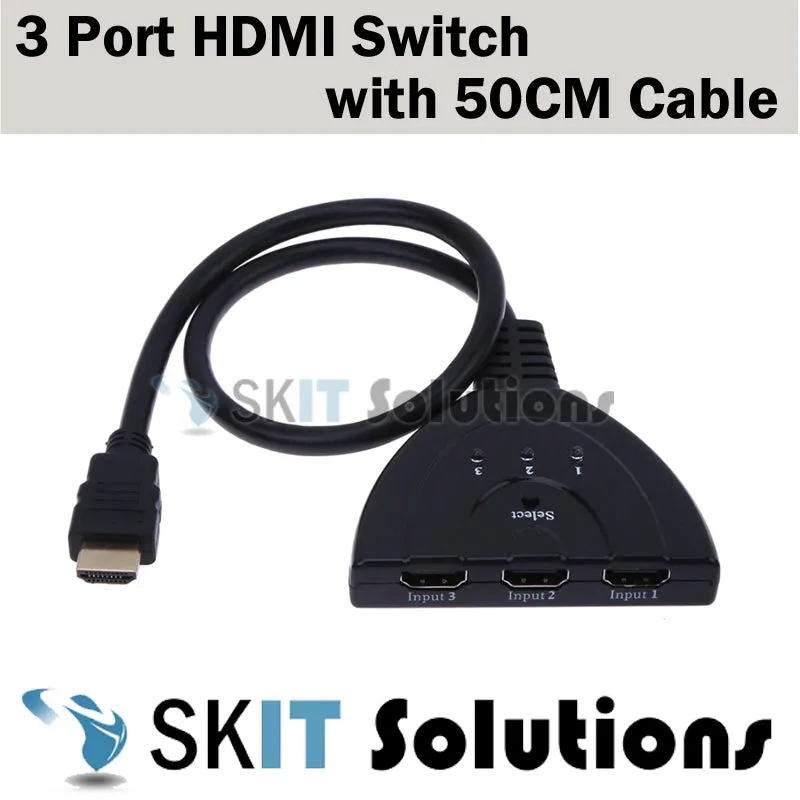

Product name: 3x1 HDMI switcher
Input video signal: 0.5-1.0 volts p-p
Input DDC signal: 5 volts p-p (TTL)
Maximum range of single connection signals: 1920X1200， 1080P
Output video signal: HDMI1.3 b HDCP1.0/1.1
Field frequency: 50/60hz
Video amplifying bandwidth: 2.5 Gpbs/250MHz
The maximum support length of the input terminal HDMI cable: 15m/49.21ft
The maximum support length of the output terminal HDMI cable: 15m/49.21ft
Support resolution: alternate (50/60hz): 480i， 576i， 1080i; Line by line(50/60hz): 480p， 576p， 720p， 1080p
Audio and video input port: 2xHDMI audio and video output port: 1xHDMI intelligent switching and manual switching dual selection

Packagage Content:
