Features:
Low cost USB dongle supporting Bluetooth LE, Thread, Zigbee, 802.15.4, ANT and 2.4GHz
Pre-built OpenThread NCP Firmware support
OpenThread Border Router support
Thread Network Sniffer with Wireshark

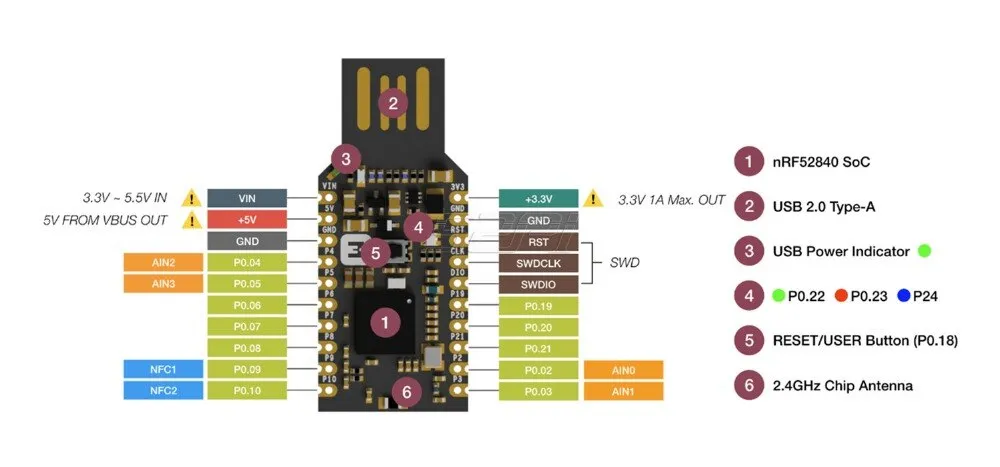

Hardware Specification

Nordic nRF52840 System-on-Chip

• ARM Cortex-M4F processor optimized for ultra-low power operation
• Combining Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT and 2.4GHz proprietary
• On-chip NFC-A tag
• On-chip USB 2.0 (Full speed) controller
• ARM TrustZone Cryptocell 310 security subsystem
• 1 MB FLASH and 256 kB RAM
• Up to 12 GPIOs available via headers
• User programmable Button and RGB LED
• On-board 2.4G chip antenna
• 3.3V regulator with 1A peak current output
• VBUS & VIN Power-Path Management
• Convenient USB dongle form factor
• Breadboard-friendly with dual 10-Pin headers
• Measures 1.65" x 0.7" x 0.16" (42mm x 18mm x 4mm) without headers soldered in

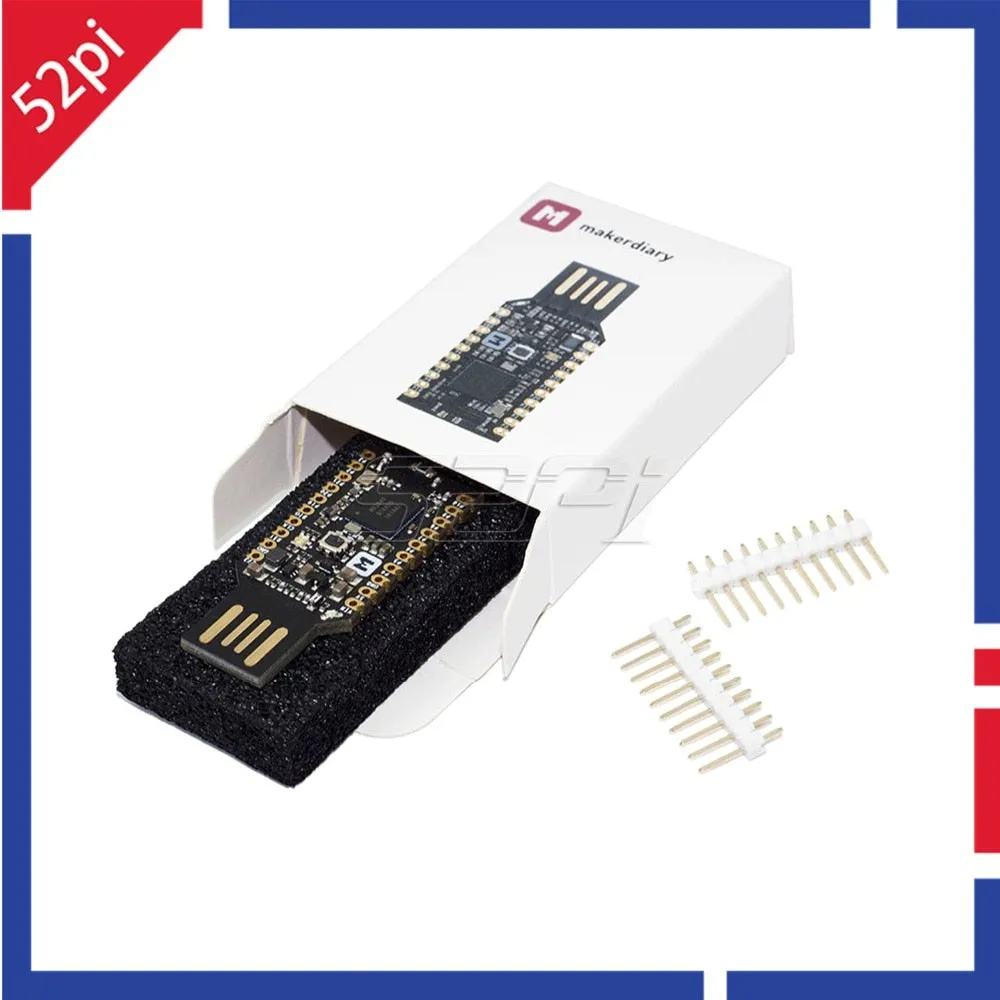

Package Includes:

• 1x nRF52840 Micro Dev Kit USB Dongle
• 2x 10 Pin Header
