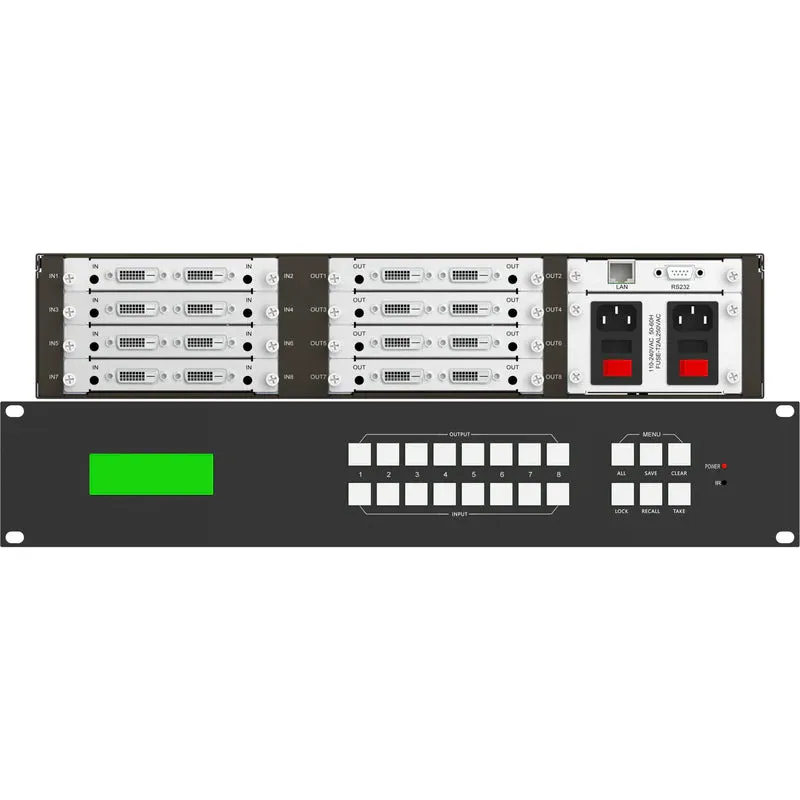

Our Modular Matrix is a high-performance video signal switcher and supports mixed multi-format seamless switching.  It supports up to 8 inputs, 8 outputs with multiple types of  daughter cards including Fiber, HDBaseT, SDI, HDMI, VGA, DVI-U.

Communication control is available through Ethernet/LAN and RS232 and downloadable PC software to control matrix signal switching, monitoring and signal resolutions.

Specifications

• Redundant power supply
• Support Seamless switching
• Support up to 8 inputs and 8 outputs
• Input/Output port: Fiber, HDBaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS)
• Maximum resolution of 1920 x 1080@60Hz (2K cards); 3840x2160@60Hz(4K cards)
• Control interface: RS232,Web-based Ethernet/LAN
• PC software to facilitate remote control, real-time display the input and output status
• Scalar inside, output resolution control available
• Video wall function
• Character overlay function: Font / color / size control available
