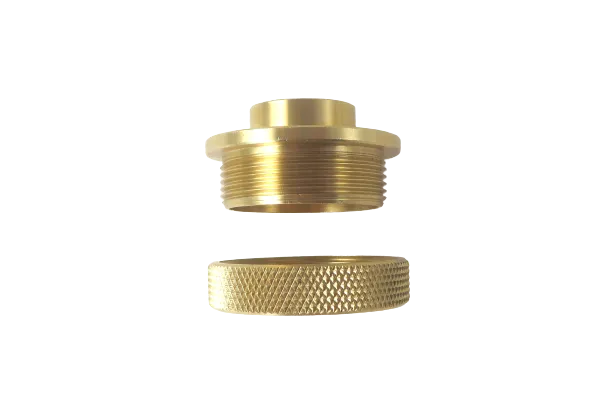

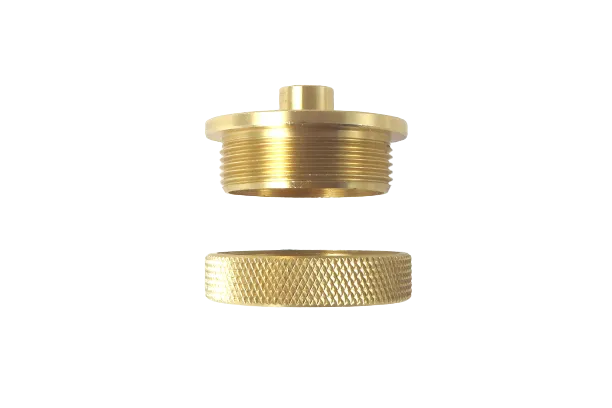

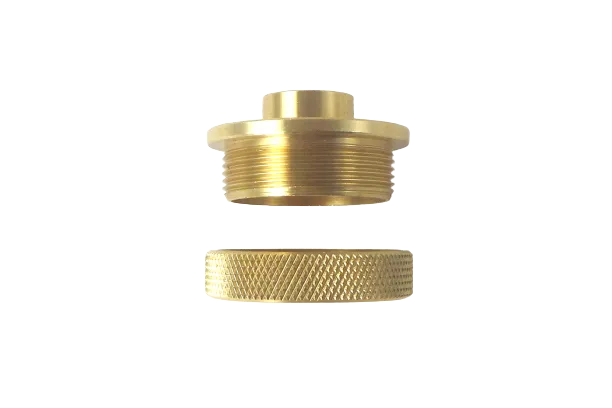

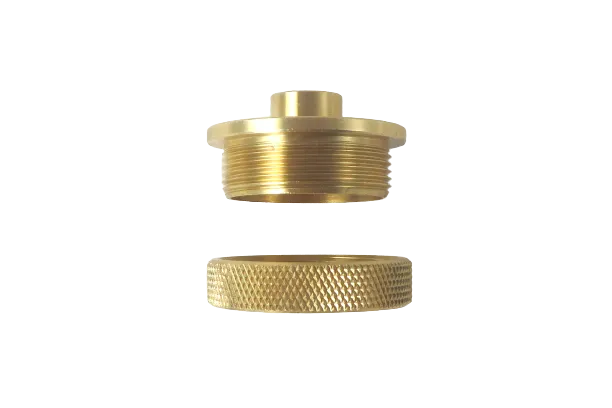

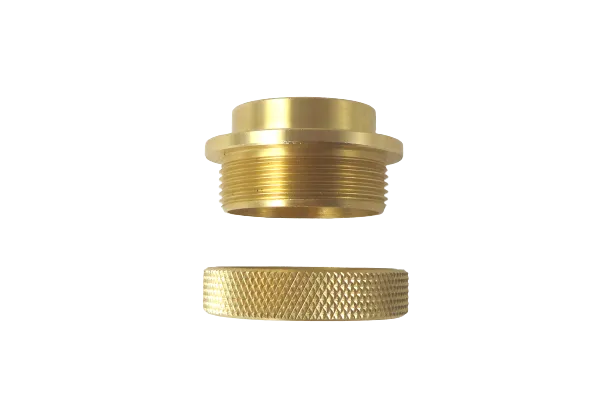

These solid brass router template guides are used to duplicate parts using a handheld router or router table. They can be installed on any router or base palte with a 1-3/16" through hole and a 1-3/8" counterbore. The router bit protrudes through the center hole in the guide bushing while the outside rides along the outline of a pattern. These are preferred over bearing guided router bits as they produce less vibration and thus produce a smoother cut and reduce tearout. They are constructed from solid brass to resist vibrating loose, resist corrosion and to prevent sparking and damage to router bits if inadvertently struck with a spinning bit. The low profile designs works with thinner template material down to 1/4" thick. Each guide comes with a separate lock nut.

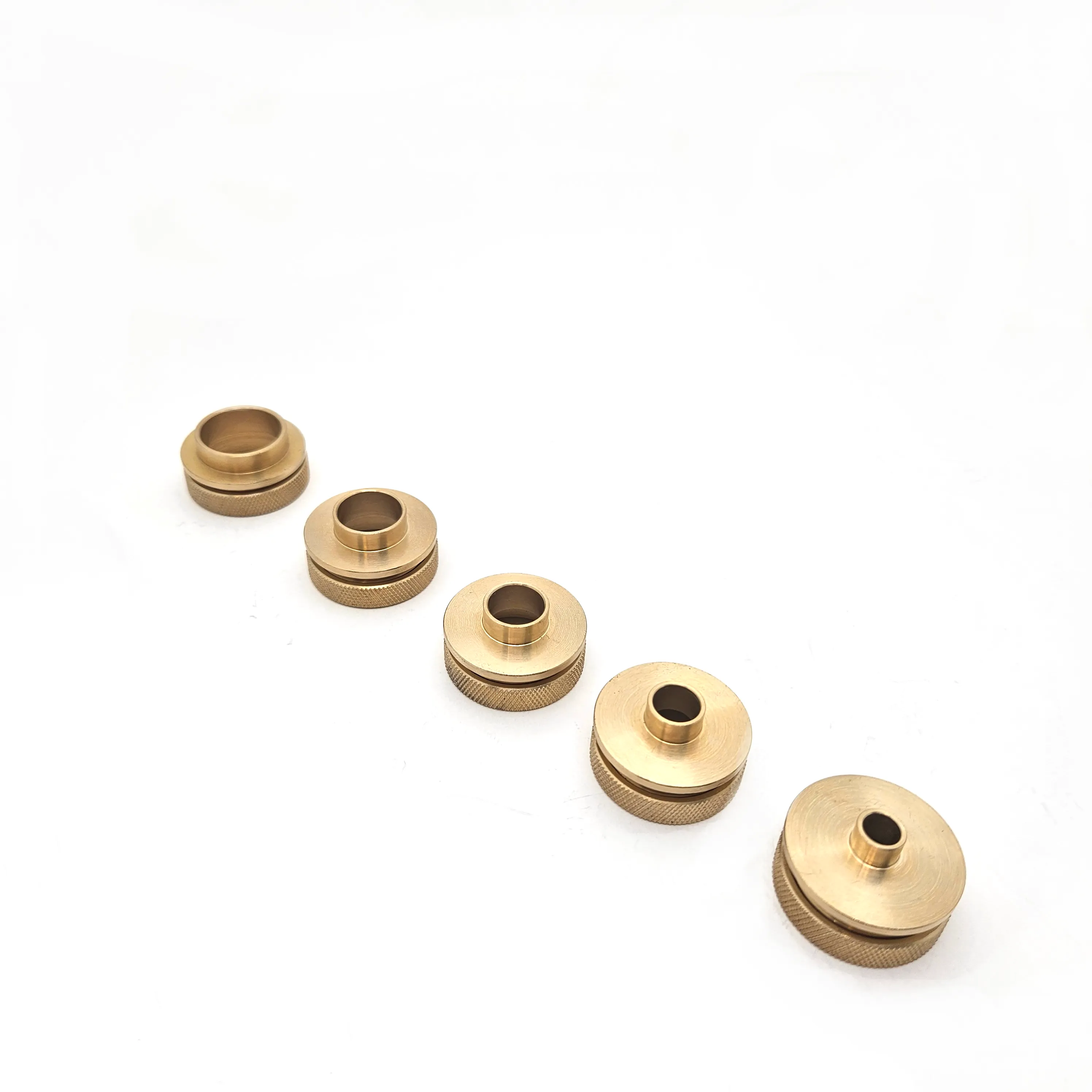

Specifications:

3/8" OD, 9/32" ID, Height .235"

1/2" OD, 13/32" ID, Height .235"

5/8" OD, 17/32", Height .235"

3/4" OD, 21/32" ID, Height .235"

1" OD, 7/8" ID, Height .235"

Overall size: 1.380 inch x .700 inch when assembled
