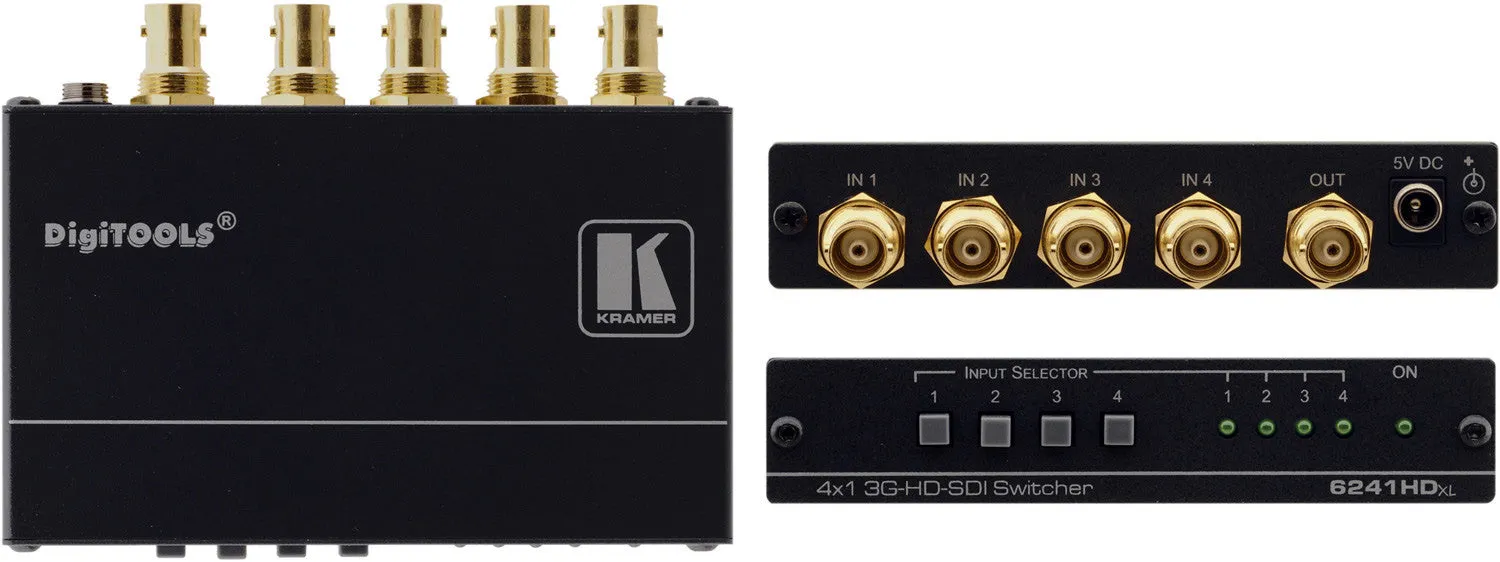

Kramer Tools 6241HDXL 4x1 3G/HD-SDI Switcher

The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.

• Max. Data Rate - 3Gbps
• HDTV Compatible
• Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
• Kramer Equalization & re-KlockingT Technology - Rebuilds the digital signal to travel longer distances
• Resolution - 8 & 10-bit (automatic)
• Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
• Digital Video Input / Output (75 Ohm) on BNC connectors
• 4.7" x 2.95" x 0.98"
