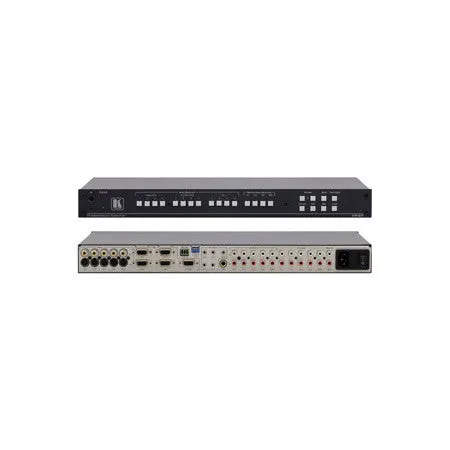

The VP-27 is a high-performance multi-format presentation switcher for composite video, s-Video, computer graphics video and stereo audio signals. It operates as a 4x1 composite video, 4x1 s-Video and a 4x1 computer graphics video switcher each with unbalanced stereo audio.

Features

• High Bandwidth - Computer graphics video (415MHz), s-Video (Y) (725MHz), composite (683MHz).
• HDTV Compatible.
• Audio Level Memory - Remembers and returns to the last audio level setting during switching.
• Condenser or Dynamic Microphone - DIP-switch selectable.
• Microphone & Audio Mixing - Input selectable master audio output.
• Mic Talk-Over - Mutes master audio output when mic signal is sensed.
• Level Controls - Master audio output, microphone input.
• Flexible Control Options - Front panel, RS-232 & IR (included).
• Front Panel Control Lockout.
• Worldwide Power Supply - 100-240V AC.
• Standard 19" Rack Mount Size - 1U. Rack "ears" included.
