Product Details
＋

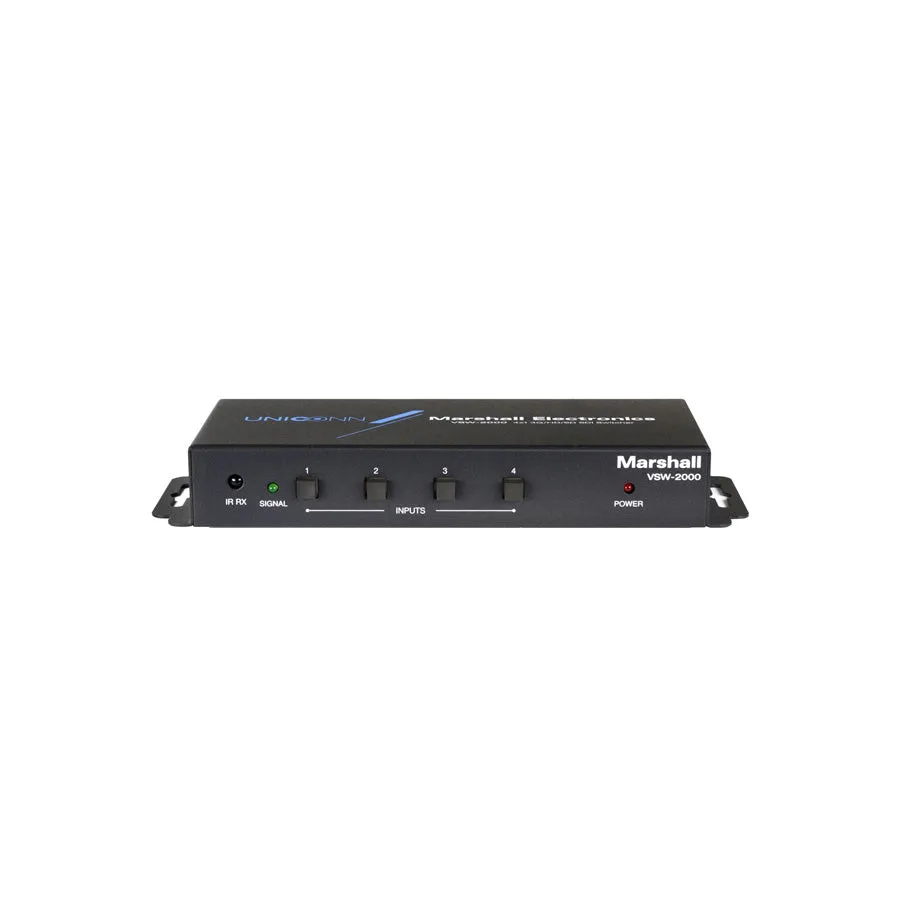

The VSW-2000 4x1 3G/HD/SD-SDI Switch receives, equalizes, and re-clocks up to 4 SDI inputs and switches the desired input to SDI equipped monitors or receivers. The switch supports all 3G/ HD/SD-SDI bit rates. Flexible control is provided through RS-232, IR remote, or front panel push buttons. VSW-2000 provides a convenient and cost effective solution in systems where simple operation plus high signal integrity is required.
Features
- Supports 3G/HD/SD-SDI video formats
- Auto switching between SD, HD, and 3G SDI signal
- Cable equalization and signal retiming
- Up to four inputs & one re-clocking SDI output
- Provides the equalized and reclocked* transmission path up to 300m (1000ft) at SD-SDI, 150m (500ft) at HD-SDI or 90m (300ft) at 3G HD-SDI
- Multiple controls by RS-232, IR remote, and push button
- Locking type power connector
Package Contents
- 1x VSW-2000
- 1x IR controller
- 1x 5V 4A power adapter
- 1x User Manual
