Product Details
＋

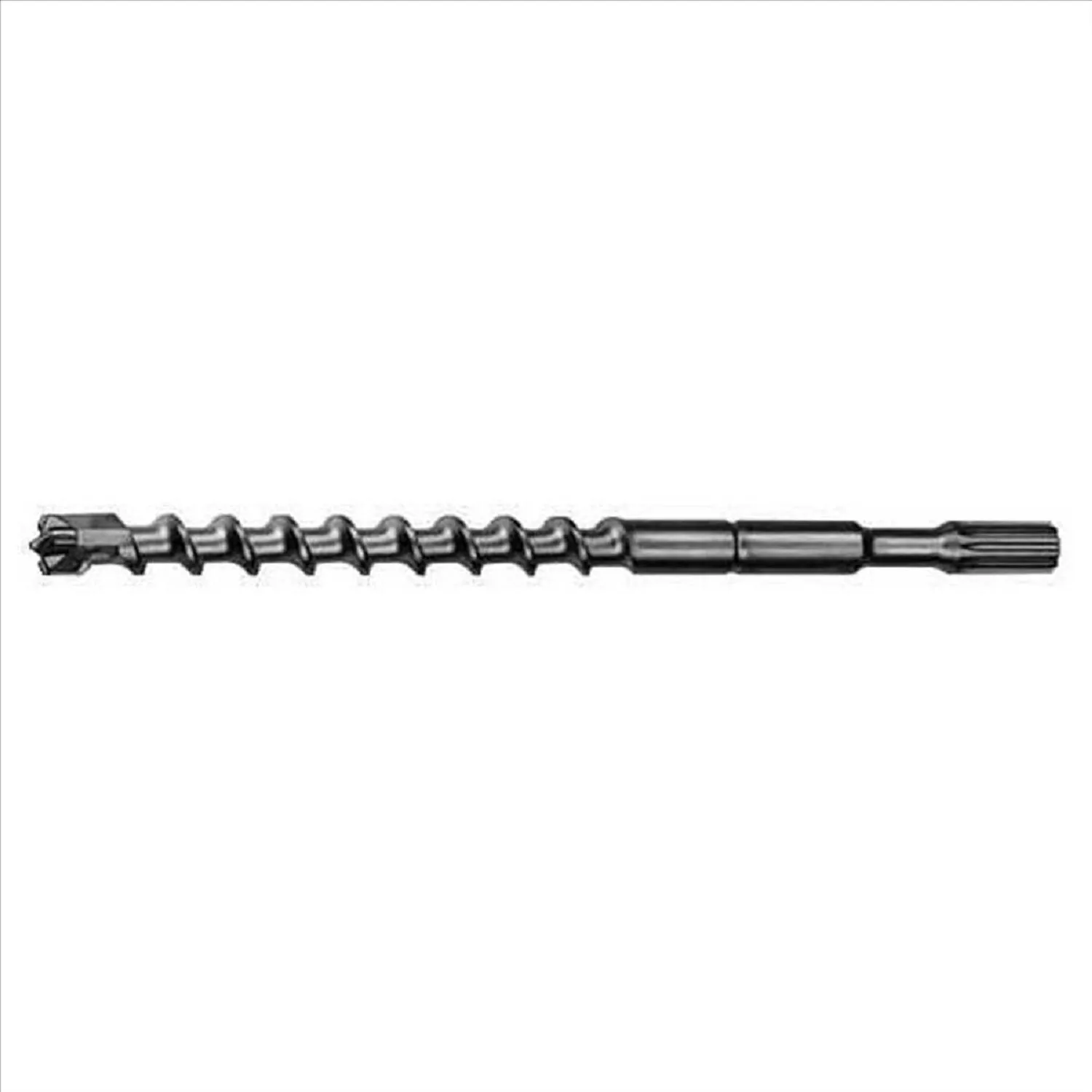

Milwaukee 4-Cutter Spline Bits have a series of 12 Spline that slide into an equal but opposite set of Spline in the drive system of the Spline Drive Hammer. This positive engagement of Spline to Spline allows Maximum transmission of energy from the Hammer to the Bit. Superior quality carbide nibs are vacuum brazed to a heat treated steel body resulting in 4 cutting edges which pulverize the concrete as the bit turns and pounds the work surface.
- Assembled Height (in.): 22.75 in
- Assembled Width (in.): 1.07 in
- Bit Diameter: 7/8 in
- Bit Length (in.): 22
- Bit diameter (in.): 0.875
- Drilling Depth (in): 20
- Shank Diameter: 3/4 in
- Bit Material: Carbide
- Color Family: Silver
- Drill & Router Bit Type: Hammer, Percussion & Masonry Bits
- Drill Bit Type: Percussion Bit
- Individual/Set: Individual
- Min Chuck Size Required: Spline
- Self-Feeding: No
- Shank Style: Spline
- Shank Style: Spline
- Tools Product Type: Power Tool
- 7/8 in. Dia, 4-cutter head
- Spline shank
- Drilling depth 17 in.
- Overall length 22 in.
- Assembled Depth (in.): 1.07 in
Product Dimensions:
22.00 x 1.00 x 0.70 in
2.02 lbs
Shipping Dimensions:
23.80 x 2.50 x 2.00 in
